AchilleΣ PLUS | Eachine Pro 58 | OSD Mod - Tutorial [EN]

Eachine Pro58 Achillez Download https://achillesfpv.eu/downloads

STLink V2 ⏩STM32 Cube Prog Software https://www.st.com/en/development-tools/stm32cubeprog.html Java https://www.oracle.com/java/technologies/javase-jre8-downloads.html

ATTENTION please!

This is a DIY mod, you can do it but at your own risk! I have no responsability if you damage your module or googles.
Caution: Dont use smaller resistors values than 240ohm and 820ohm.

What do you need?
First, do you need flash module with the latest plus firmware.

Material:
Solder Iron
Solder
Tweezers
Cut pliers

Components:
Eachine Pro 58 module
240ohm Smd Resistor 1206 size(You can use the 330ohm instead 240) I use 330ohm.
820ohm Smd Resistor 1206 size(You can use the 1000ohm instead 820) I use 1000ohm.
Wire
Heatshrink

Steps

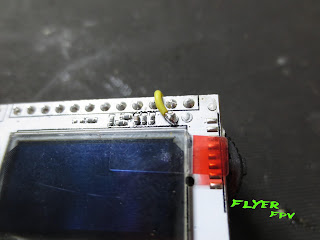

Cut the pin 3 from the top like image

Solder the 1000ohm on wire

Cover it with some heatshrink tube

Solder the 330ohm resistor between pin3 and pin 4

Solder the one wire end to pin4

Solder the other wire end on the top like image below

Almost Ready!

One more thing!

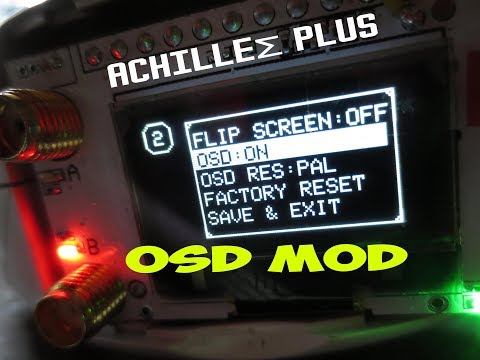

Activate OSD on firmware.

Dont forget Save & Exit

Done! You are a DIY professional!
